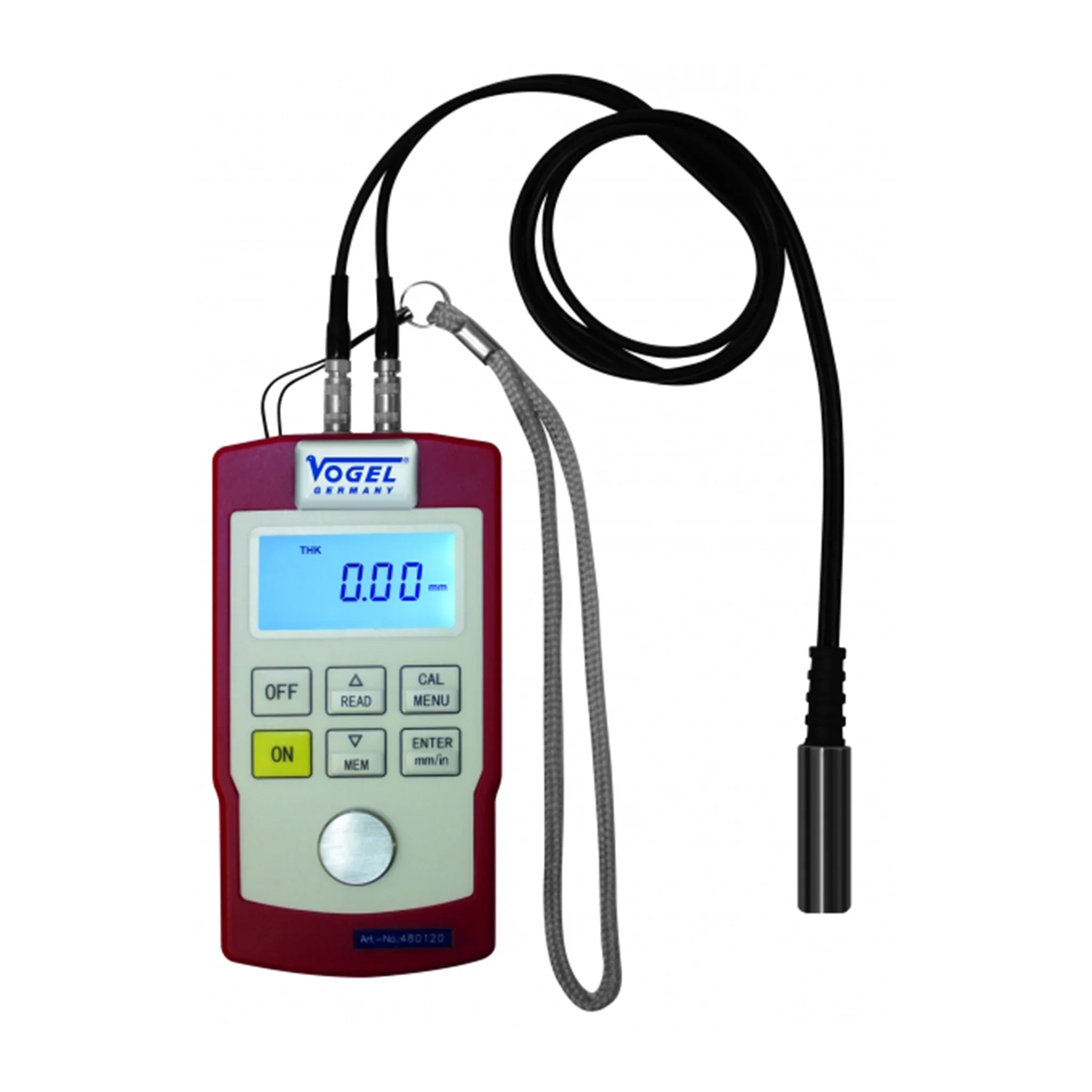

Ultrasonic Thickness Gauge
Tax included. Shipping calculated at checkout.
Vogel (Germany)
SKU:VOGEL-480120
Shipping & Delivery
SHIPPING POLICY
You can contact us for special shipping and delivery arrangements.
For orders within Singapore
| Orders | |
| < $180 | $25 Shipping charge |
| Above $180 | Free shipping subject to size of item |
Large and Bulky items: additional shipping charges may apply. We will contact you separately.
For orders outside Singapore
We can arrange a forwarder pickup for your goods. Taxes, duties and other expenses paid during transport is borne by the customer. For special shipping arrangements you may contact us.
Measurement the thickness of both metallic and non metallic surfaces
Resolution: 0.1 mm / 0.01 mm
Measuring range:
1.0 - 99.99 mm (0.01 mm) / 100.0 - 250.0 mm (0.1 mm)
0.39 - 3.94 inch (0.01 mm) / 3.93 - 9.83 mm (0.1 mm)
Max. total accuracy: ±0.5% n + 0.01 mm
Materials: steel, cast iron, grey cast iron, nodular cast iron, aluminium, copper, bronze, zinc, glass (quartz), ceramics, composites, epoxies, homogeneous plastics and other materials where ultrasonic waves can be transmitted effectively.
Operates in any position: horizontal, vertical or upside down
Automatic calibration function in mm/inch
Integrated test block for measurement makes calibration easy and quick
Internal data memory can store 40 measurements
Comes in carrying case
Operated with 2x 1.5V AA Batteries
Uses
Thickness measurements, surfaces, storage tanks, pressure boilers, bridge construction, housings. Rugged housing gives good use in both light and heavier industries.
